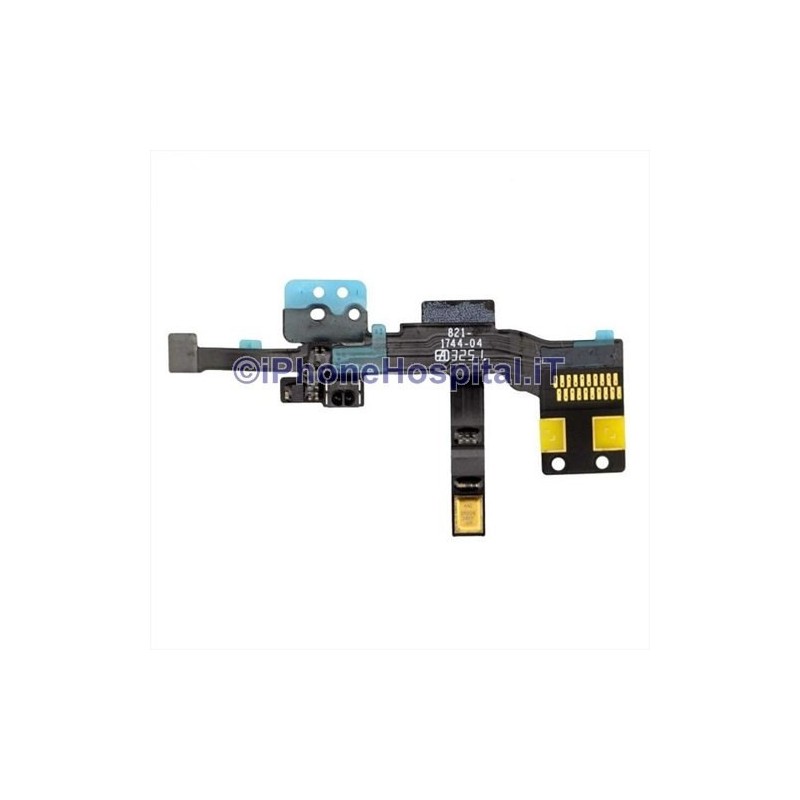

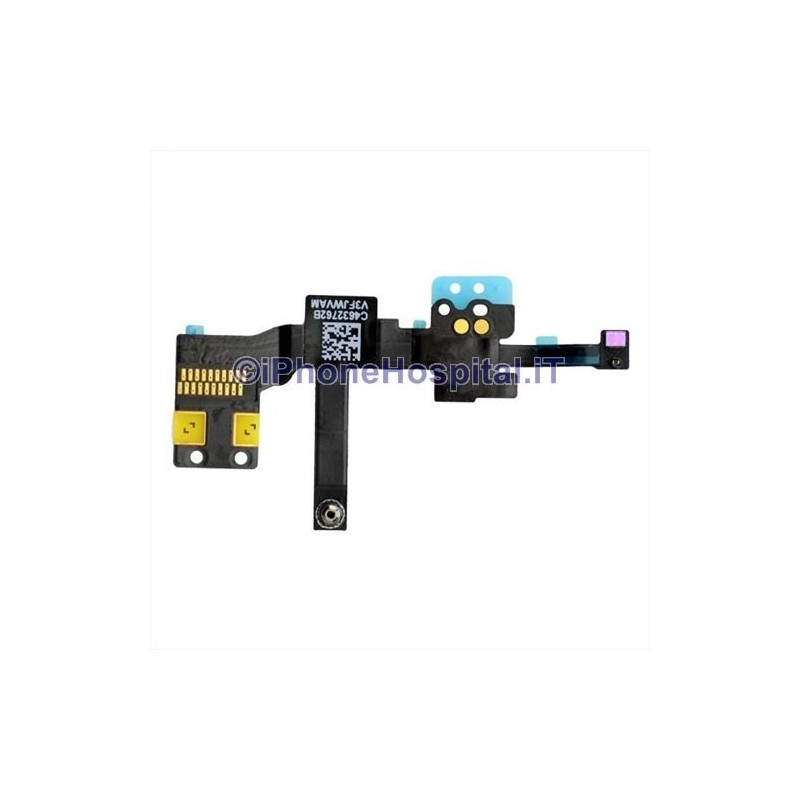

Proximity Sensor for Apple iPhone 5C

The Proximity Sensor for Apple iPhone 5C is the flex cable fitted at the top of the phone, above the earpiece speaker, which integrates the proximity sensor, the ambient light sensor and the top microphone. It turns the display off when you hold the iPhone to your face during a call and manages auto-brightness.

Replacement is needed when the screen stays on during calls and your cheek presses buttons by mistake, when the screen stays black and does not turn back on when you move the phone away, when auto-brightness does not work or when the flex was damaged during a display replacement.

Key features

• Type: proximity and ambient light sensor flex cable
• P/N: 821-1614-A
• Function: proximity detection during calls, auto-brightness, top microphone
• Installation: connector on the logic board, high difficulty
• Quality: compatible part, not original Apple
• Quality control: QC Passed

iPhone 5C Proximity Sensor Replacement

With an iPhone 5C proximity sensor replacement the display switches off correctly again during calls and auto-brightness works once more.

Proximity Sensor Spare Part for iPhone 5C

A spare part suited to technicians and service centres, as well as to experienced DIY repairers with the right tools. Discover all the details of this spare part

Compatibility

• Apple iPhone 5C (models A1456, A1507, A1516, A1529, A1532)
• All storage sizes: 8GB, 16GB, 32GB
• Not compatible with iPhone 5, iPhone 5S and iPhone SE (flex with integrated front camera)

Package contents

• 1 x Proximity Sensor for Apple iPhone 5C

Tools are not included.

Installation note

To reach the flex you need to remove the display, the metal shield and the earpiece speaker. When reassembling, carefully seat the proximity sensor in its housing and check that the rubber boot is aligned with the hole in the glass: a misplaced sensor causes a black screen or incorrect switch-off during calls.

Certifications and warranty

Every spare part passes QC Passed quality control before shipping. The product is covered by the legal warranty under Italian Legislative Decree 206/05 (Consumer Code): in case of a conformity defect the part is replaced, provided it shows no signs of tampering, damage from incorrect installation or liquid damage. Images are representative of the product.
