USB Digital Microscope 1.3 Megapixel 200x with 8 LED Illumination

The USB Digital Microscope 1.3 Megapixel 200x with 8 LED Illumination is a digital microscope that connects to a PC through USB 2.0 and lets you observe, photograph and film small details at a magnification from 20x to 200x.

It is used to magnify stamps, coins, banknotes, plants, insects, rocks and minerals, as well as electronic components and solder joints during repairs. The image is shown on screen and can be saved as a photo or video.

Technical specifications

• Image sensor: 1.3 megapixel
• Magnification: 20x to 200x
• Focus: manual from 10 mm to 500 mm
• Photo and video resolution: up to 1600x1200 (also 1280x1024, 1280x960, 1024x768, 800x600, 640x480, 352x288, 320x240, 160x120)
• Frame rate: max 30 f/s with brightness under 600 Lux
• Video format: AVI; photo format: JPEG or BMP
• Lighting: 8 LEDs adjustable with a wheel
• Interface: USB 2.0, 5 V DC power from the USB port
• OSD language: English
• Quality control: QC Passed

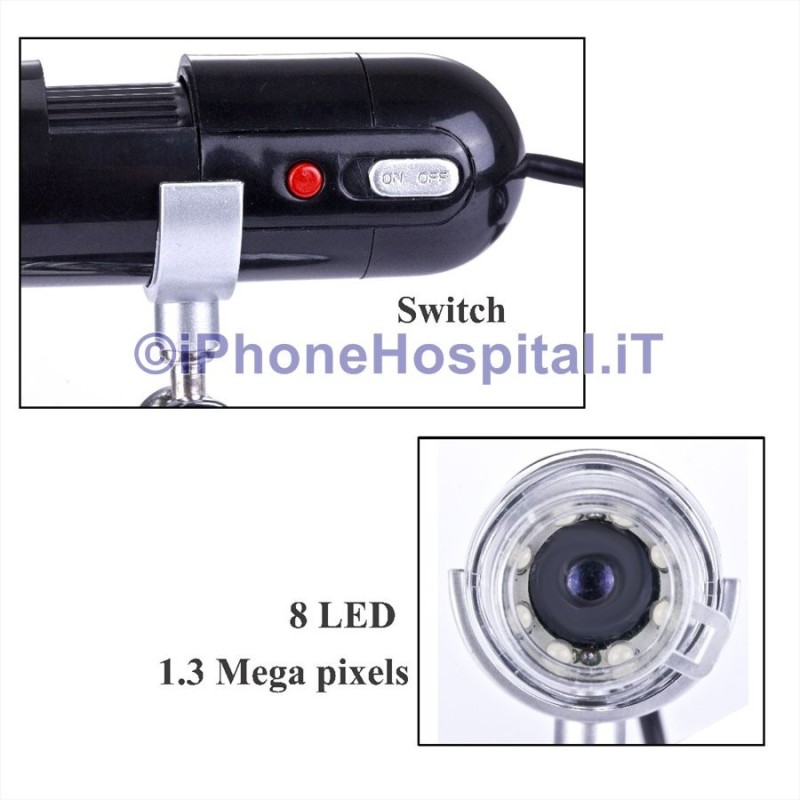

USB Microscope with 8 Adjustable LEDs

The 8 adjustable LED lights illuminate the subject and manual focus lets you go from near to far. The 200x digital microscope is useful in the workshop, at school and for collecting.

Workshop Instrument for Observation and Inspection

Suitable for technicians, service centers, collectors and enthusiasts. Discover all the details of this microscope

Compatibility

• Operating systems listed: Windows 2000, XP, Vista, 7 (32 and 64 bit) and Mac
• Minimum requirements: P4 1.8 or higher processor, 256 MB RAM, 32 MB video memory, USB 2.0 port, CD-ROM drive
• Check software and driver availability for your operating system version

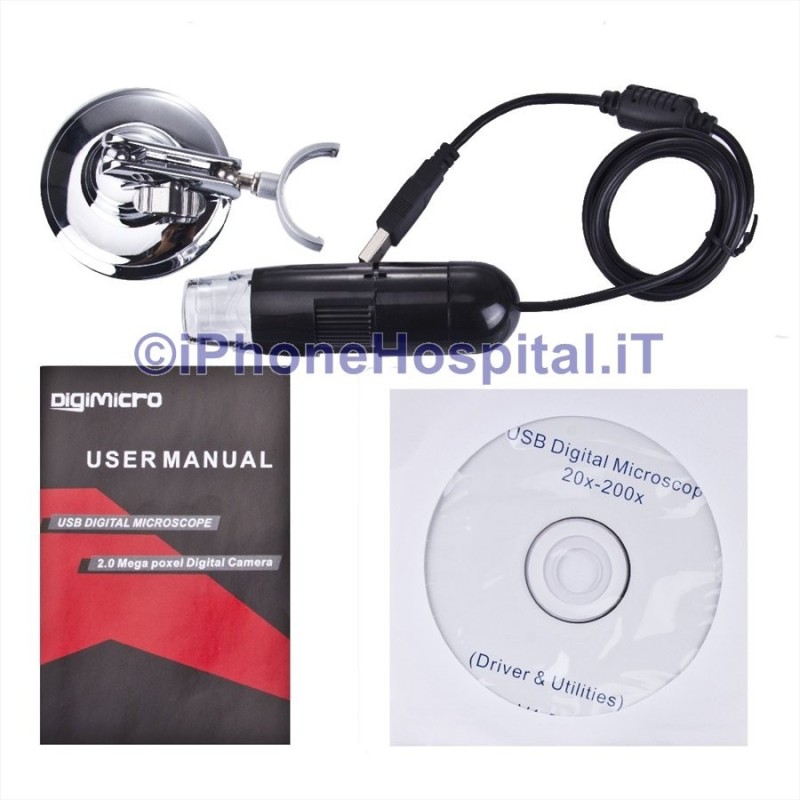

Package contents

1 x USB Digital Microscope 1.3 Megapixel 200x with 8 LED Illumination

Usage note

Install the software before connecting the microscope to the PC and adjust the LED brightness to suit the subject. Handle the lens with care and avoid knocks.

Certifications and warranty

Every item passes QC Passed quality control before shipping and is covered by the legal guarantee of conformity under Italian Legislative Decree 206/05 (Consumer Code). Warranty replacement is available for functional defects, provided the item has not been damaged by misuse, impacts or tampering. Images are for illustration purposes.
