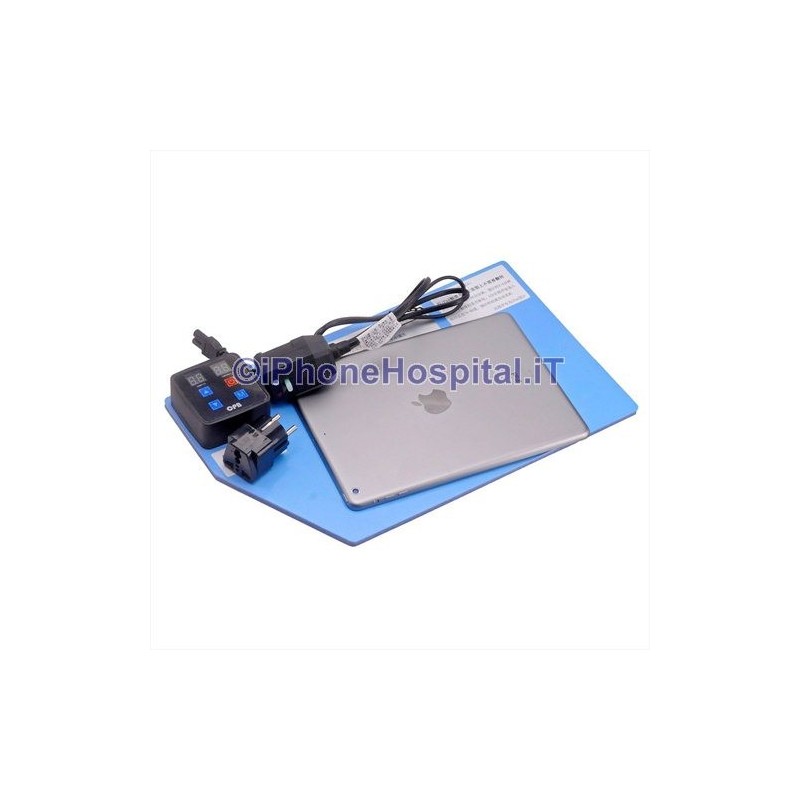

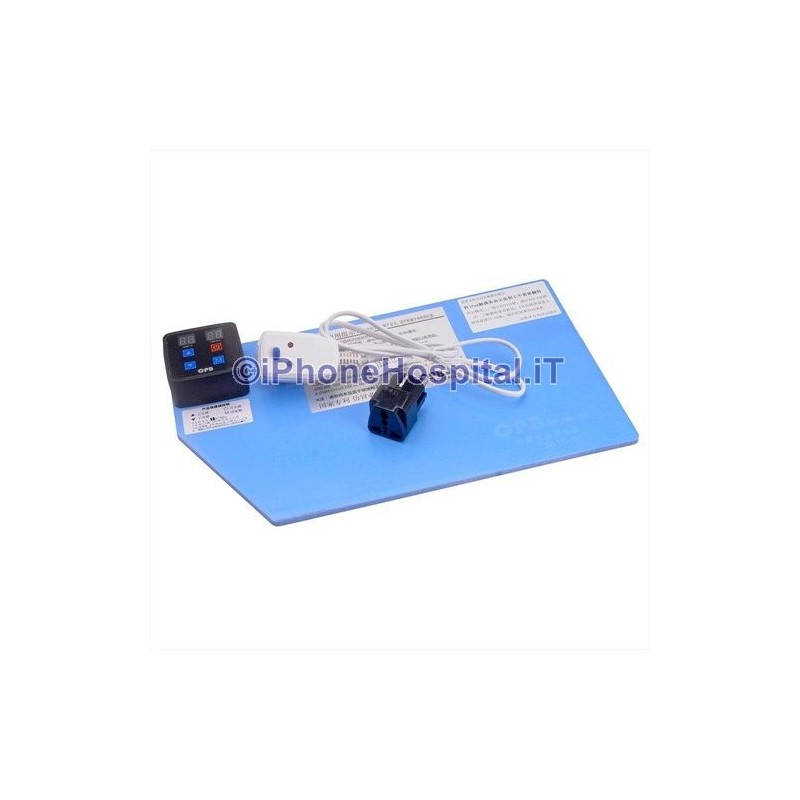

Heated opening thermal pad for tablet and smartphone screens with digital display.

Dual display showing temperature and time

Platform for separating display through adjustable temperature surface.

- Model: cpb280

- Designed to remove iPad screens

- Made with high-quality, heat-resistant silicone coating

- Dual digital display Temperature and time control

- Voltage: 220 V-50Hz

- Power: 250 - 280 Wh

- Thickness: 7 mm

- Dimensions: 38 x 22 cm

- Temperature control: 30 - 99 ℃

Features
1. Screen separation machine with heat on the fast silicone heating plate, flexible silicone material heating, more uniform heating than a hot air gun, able to quickly soften the plastic surface, making screen disassembly safer and more convenient.
2. Greatly reduces the possibility of breaking the screen, making screen disassembly more efficient!
3. Suitable for 12.5-inch Tablet Phone / Mobile Phone below
4. Note: Do not cut the silicone heating pad, to avoid damage or leaks from hot chips

Adjustment Method

1. Press the power button for 3 seconds to start, default temperature is 60 degrees. The temperature can be adjusted from 30-99 degrees. Press the temperature increase button and press the temperature decrease button, slightly adjust the output power to reach constant temperature reaching the set temperature. The temperature controller will automatically turn off in 99 minutes if the time is not changed after turning it on.
2. Press the M button to set the shutdown time which can be set between 15 and 99 minutes. Press the button to increase the temperature and press the button to decrease the temperature, you can also return to the temperature settings by pressing the M button.

Work model two:

1. Press the power button for 3 minutes to start, then press the M button for 2 seconds to enter Model Two. The machine operates for 5 minutes at full capacity and stops working after 5 minutes. Then, you can slightly adjust the output power to reach constant temperature reaching the set temperature. The machine will start operating at a constant temperature. If you want to return, press the M button for 2 seconds and the machine will turn off after 25 minutes.

Notes
1. Turn on the power switch, be careful to select the input voltage (110V, 220V), choosing the wrong one can cause a short circuit and burn the heating plate.
2. The error temperature indicated on the digital display is 20 degrees, the internal temperature and the edge temperature will have errors.
3. Note that the Resistance Burns when the temperature is set to 80 degrees!

Compatible with:

Apple: iPad mini, iPad Air, all iPhone models, New iPad,
Samsung: Galaxy Tab A 8.0 / T350, Galaxy S5 mini / G800, Galaxy Tab S 10.5 / T800, Galaxy Tab S 8.4 / T700, Galaxy Tab 4 7.0 3G / T231, Galaxy Tab 4 7.0 / SM-T230, Galaxy Tab 3 7.0 / T211, Galaxy Tab 4 8.0 / T330, Galaxy Tab 3 Lite 7.0 3G / T111, Galaxy Note Pro 12.2 / P900, Galaxy Tab Pro 8.4 / T320, Galaxy Note 10.1 (2014 Editon) / P600, Galaxy Tab 3 10.1 / P5200 / P5210, Galaxy Tab 3 8.0 / T3100 / T3110 and many more.

Input Voltage: 100V-240V 50 / 60Hz

Power: 300W

Temperature Range: -40 °C to 120 °C 250 - 280 Wh

Dimensions: 38 * 22 * centimeters

What's in the box:

1 x Heating Plate

1 x Power Cable 110-220V
