Professional USB tester OLED screen Current Voltage

Features:

POWER-Z KM001 features a 128 × 64 OLED screen resolution. The front panel with black glass fiber plated in gold, four corners using fixed gold-plated hole, the appearance and size of the USB table is no different from the ordinary, ordinary users will soon be able to start. USB table integrated with a measurement accuracy of 0.02%, temperature drift for voltage at 10 ppm and currently dedicated ADC chip. At the same time, in order to ensure current accuracy, it also integrates a typical temperature drift of 20 ppm, high-quality 3W sampling resistance power. Error up to 0.01%.

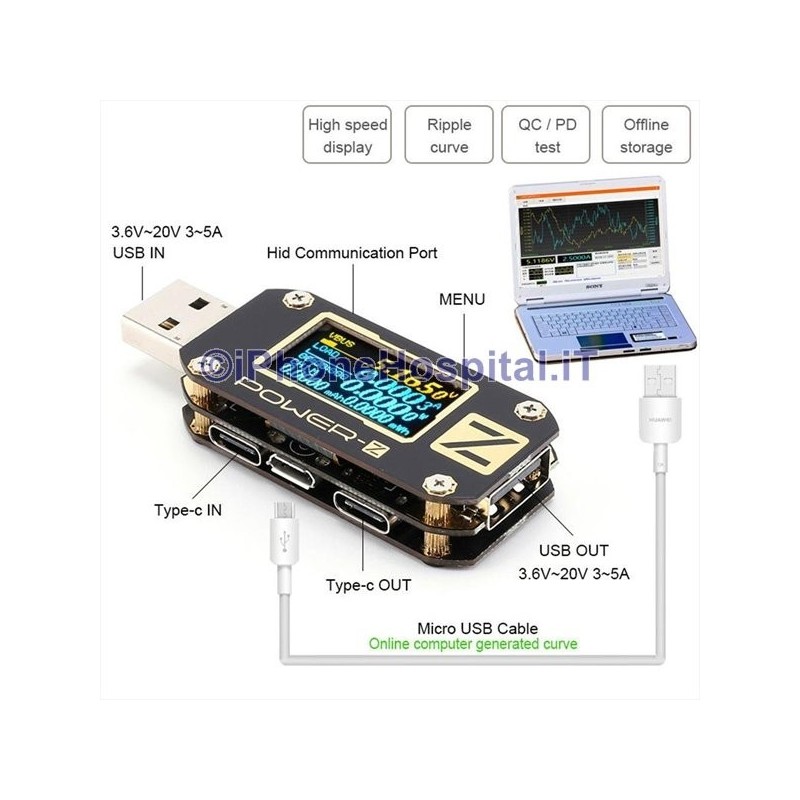

POWER-Z KM001 This test table integrates a total of six USB ports, to meet the needs of most gamers' tests. Another feature of this is to support ripple tests. Its function is similar to a micro-oscilloscope, you can test a ripple below 50Hz, enough for daily use.

Specifications:

1. Main control circuit: Cortex-M3 72 MHz

2. Display screen: OLED 128 x 64 50 MHz (Refresh rate 50/s)

3. Internal storage memory duration: about 30 years of random storage algorithm

4. Interface: USB-A, Micro USB, TYPE-C.

5. Long-term stability: ± 50 ppm / 1000 hours

6. Power supply type: HID 5V port, other power socket voltage 3.7-24V.

7. Maximum input voltage: 24V

8. Operating current: 4-15 mA (Standby 3mA @ 5V)

9. QC4.0 Test Sniffing: support

10. Power Delivery Test Sniffing: Support, Pro version supports acquisition of PD2.0 protocol packets

11. Typical interface contact resistance: from TYPE-C to TYPE-C 28m ohm / TYPE-A to TYPE-A 30m ohm.

12. Line resistance rating: support

13. Offline data: 2560 x 5 group memory 512 KB

14. Size: 62 x 24 x 12 mm
